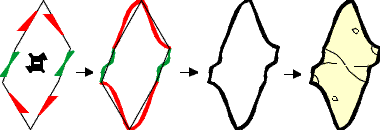

The template for the IH9 system is any hexagon with opposite sides parallel to one another; the sides of one pair are equal and the remaining other four sides are also all equal. All sides of the hexagon can be shaped, as indicated by the half-arrows. The template and any tile shape formed from it have a centre of two-fold rotation symmetry as indicated by the dog pattern. Two examples of the template are shown
A translation cluster, based on the first template, is

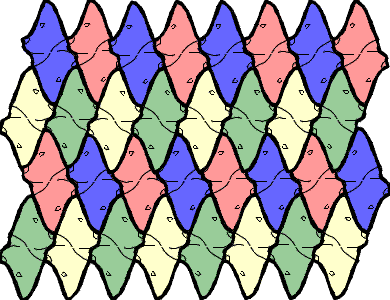

A section of the tiling formed by this template is shown below, with a translation cluster outlined. The two basic translations are indicated by the the vectors drawn from the highlighted cluster. The tiling has two different centres of two-fold rotation symmetry and two different axes of glide reflection symmetry, as indicated.. The tiling symmetry group is pgg.
|
