The template for the IH4 system is any hexagon with a pair of opposite sides equal and parallel to one another. All six sides can be shaped as indicated by the half-arrows. The template and any tile shape formed from it have no internal symmetry, as indicated by the dog. An example of a template is

A  translation cluster is

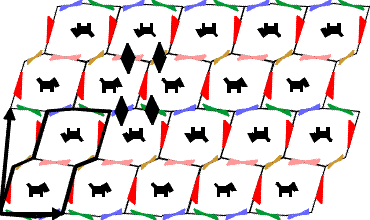

A section of the tiling formed by this template is shown below, with a translation cluster outlined.  The two basic translations are indicated by  the vectors drawn from the highlighted cluster. The tiling has four different centres of two-fold rotation symmetry. Its symmetry group is p2.

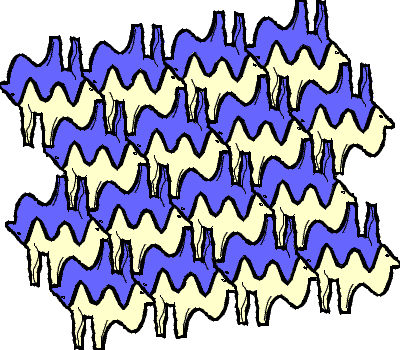

As an example, a camel shaped tile can be formed as shown

Two differently coloured tiles are required to ensure no tiles of the same colour are adjacent to one another.

 Author - Tom P McLean --- tom.mclean@virgin.net
