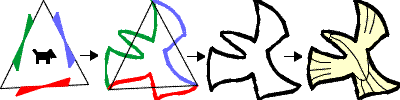

The template for the IH84 system is any triangle. All three sides can be shaped as indicated by the half-arrows. The template and any tile shape formed from it have no internal symmetry, as indicated by the dog.
A translation cluster is

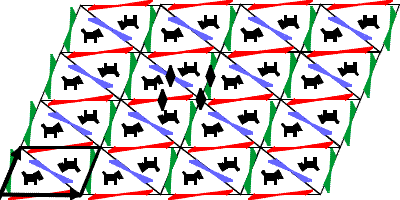

A section of the tiling formed by this template is shown below, with a translation cluster outlined. The two basic translations are indicated by the vectors drawn from the highlighted cluster. The tiling has four different centres of two-fold rotation symmetry, an example of each of which is shown. There are no reflction symmetries. The symmetry group of the tiling is p2.
|
