The template for the IH38 system is an isosceles triangle with a 120° angle as shown below. Only the two equal sides can be shaped, as indicated by the half-arrows. The template and any tile shape formed from it have no internal symmetry as indicated by the dog. An example of a template is
A translation cluster is

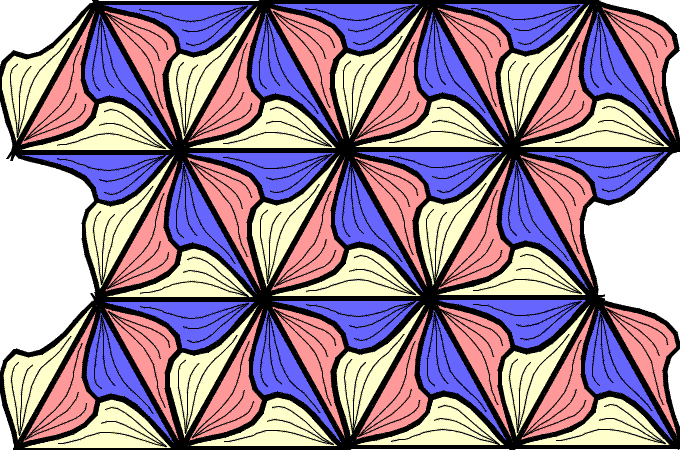

A section of the tiling formed from this template is also shown below, with a translation cluster outlined. The two basic translations are indicated by the vectors drawn from the highlighted cluster. The tiling has two types of centres of three-fold rotation symmetry, as well as one axis of glide and one of mirror reflection symmetry. An example of each is indicated. The tiling symmetry group is p31m.
|
